Throttle Valves

Products Flow Control Valves Throttle Valves
Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size
Throttle Valves Cartridge Type

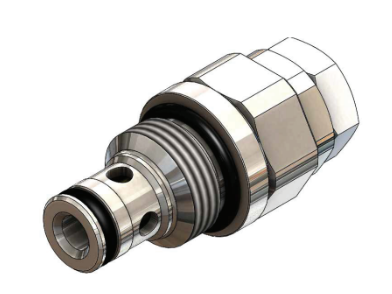

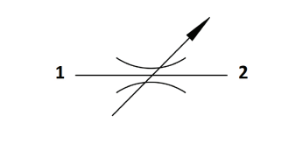

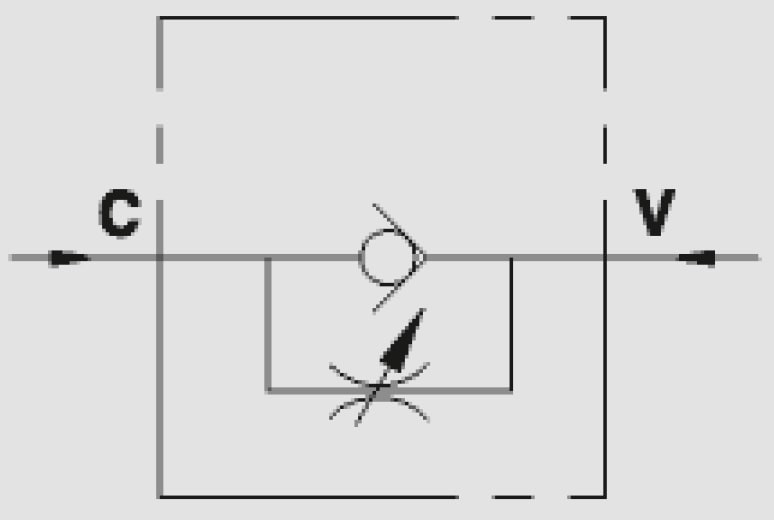

Barrel Type Unidirectional Flow Control Valves Barrel Type Unidirectional Flow Control Valves FR.T0.S08 350 40 SAE08-2

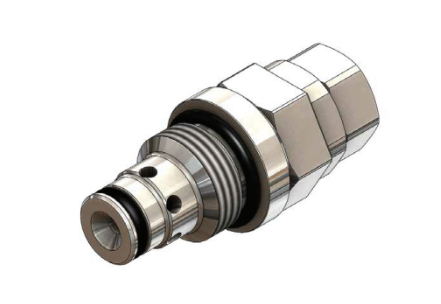

Barrel Type Unidirectional Flow Control Valves Barrel Type Unidirectional Flow Control Valves FR.T4.S08 350 25 SAE08-2
Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size
90° Flow Regulator Valves

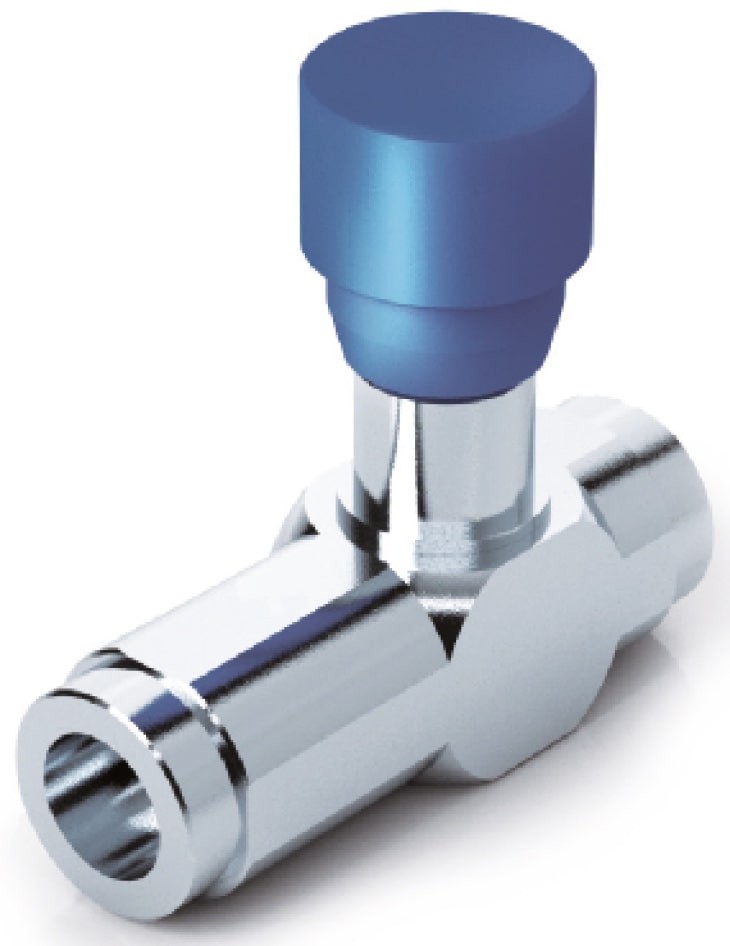

90° Flow Regulator Valves 90° Flow Regulator Valves VRFB 90° 1/4” 350 15 1/4”
VRFB 90° 3/8” 350 30 3/8”
VRFB 90° 1/2” 350 50 1/2”
VRFB 90° 3/4” 320 80 3/4”
VRFB 90° 1” 300 110 1”
90° Flow Regulator Valves
90° Flow Regulator Valves 90° Flow Regulator Valves VRFU 90° 1/4” 350 15 1/4”
VRFU 90° 3/8” 350 30 3/8”
VRFU 90° 1/2” 350 50 1/2”
VRFU 90° 3/4” 320 80 3/4”
VRFU 90° 1” 300 110 1”
Fixed Throttle Check Valves

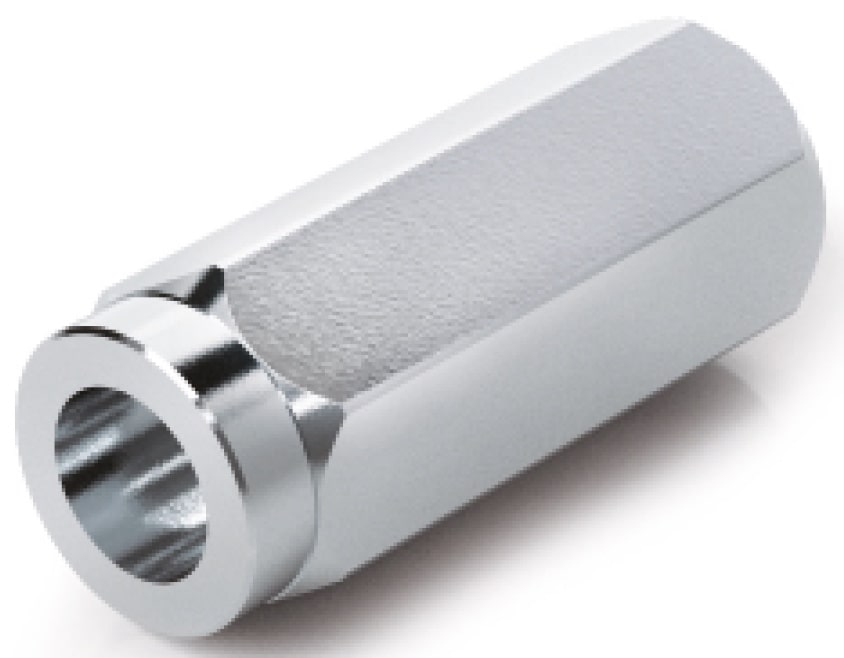

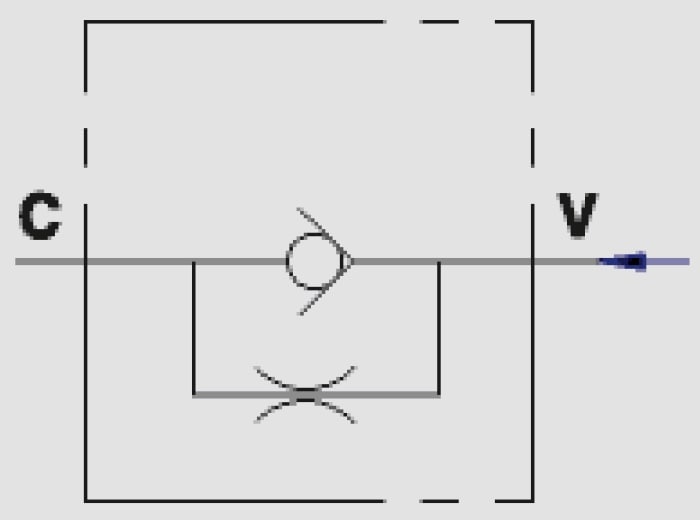

Fixed Throttle Check Valves Fixed Throttle Check Valves VUSF 1/4” 350 20 1/4”
VUSF 3/8” 350 45 3/8”
VUSF 1/2” 350 70 1/2”
VUSF 3/4” 350 110 3/4”
VUSF 1” 350 160 1”
VUSF 1” 1/4 350 200 1 1/4”
VUSF 1” 1/2 350 300 1 1/2”
Barrel Type Bidirectional Flow Control Valves

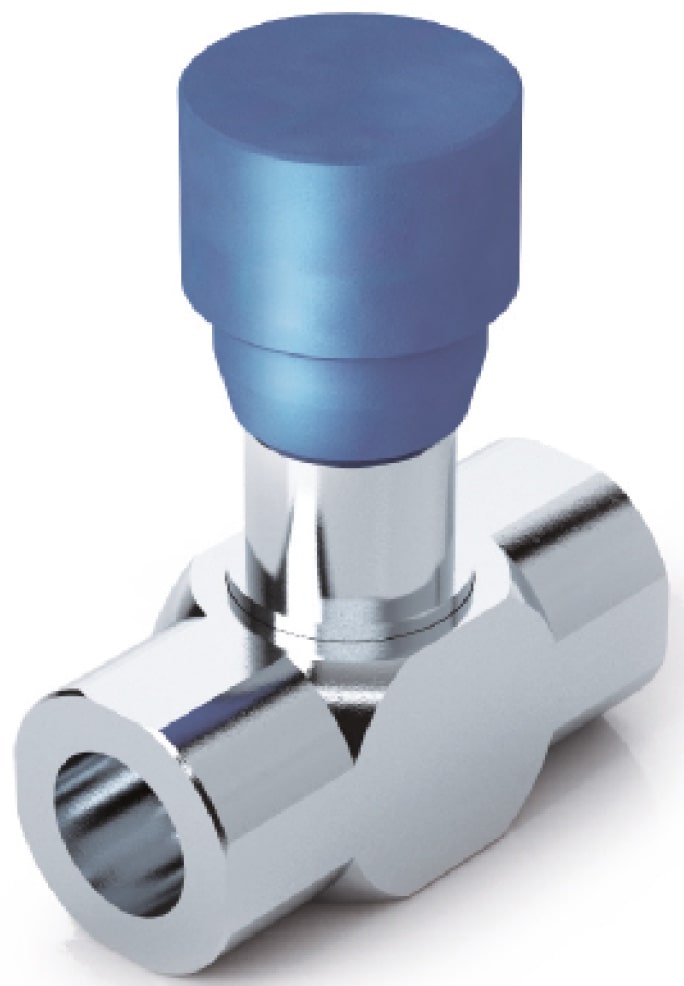

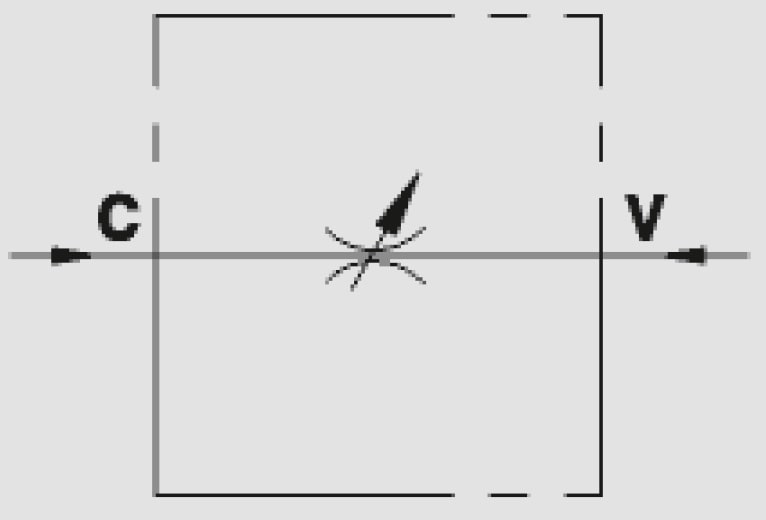

Barrel Type Bidirectional Flow Control Valves Barrel Type Bidirectional Flow Control Valves VRB 1/4” 300 20 1/4”
VRB 3/8” 300 45 3/8”
VRB 1/2” 300 70 1/2”
VRB 3/4” 250 110 3/4”
VRB 1” 250 160 1”
Barrel Type Unidirectional Flow Control Valves
Barrel Type Unidirectional Flow Control Valves Barrel Type Unidirectional Flow Control Valves VRF 1/4” 300 20 1/4”
VRF 3/8” 300 45 3/8”
VRF 1/2” 300 70 1/2”
VRF 3/4” 250 110 3/4”
VRF 1” 250 160 1”
VRF 1” 1/4 230 210 1 1/4”
VRF 1” 1/2 230 280 1 1/2”
