Check Valves

Products Check Valves Check Valves
Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size

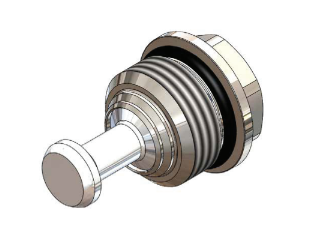

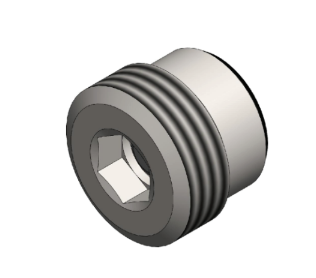

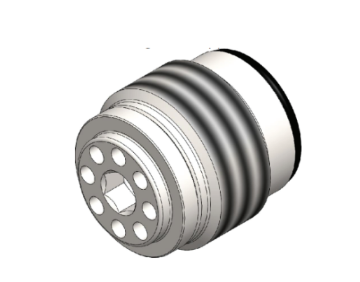

Insert Type Check Valves
Cross Line Relief Valves Cross Line Relief Valves IS.0.M16 420 40 R004
Cross Line Relief Valves Cross Line Relief Valves IS.0.M18 420 60 R002
Cross Line Relief Valves Cross Line Relief Valves IS.0.M20 420 75 R003
Cross Line Relief Valves Cross Line Relief Valves IS.0.M24 420 100 R005
Cross Line Relief Valves Cross Line Relief Valves IS.0.M27 420 150 R054
Cross Line Relief Valves Cross Line Relief Valves S.D0.S06 350 20 R169
Cross Line Relief Valves Cross Line Relief Valves S.D0.S08 350 80 R106
Cross Line Relief Valves Cross Line Relief Valves S.D0.S10 350 100 R166
Cross Line Relief Valves Cross Line Relief Valves S.D0.G18 350 10 R056
Cross Line Relief Valves Cross Line Relief Valves S.D0.G14 350 20 R007
Cross Line Relief Valves Cross Line Relief Valves S.D0.G38 350 50 R008
Cross Line Relief Valves Cross Line Relief Valves S.D0.G12 350 80 R009
Cross Line Relief Valves Cross Line Relief Valves S.D0.G34 350 120 R057
Cross Line Relief Valves Cross Line Relief Valves S.R0.G18 350 10 R056
Cross Line Relief Valves Cross Line Relief Valves S.R0.G14 350 20 R007
Cross Line Relief Valves Cross Line Relief Valves S.R0.G38 350 50 R008
Cross Line Relief Valves Cross Line Relief Valves S.R0.G12 350 80 R009
Cross Line Relief Valves Cross Line Relief Valves S.R0.G34 350 10 R057
Cross Line Relief Valves Cross Line Relief Valves S.B0.G18 350 10 R058
Cross Line Relief Valves Cross Line Relief Valves S.BO.G14 350 20 R012
Cross Line Relief Valves Cross Line Relief Valves S.B0.G38 350 30 R013
Cross Line Relief Valves Cross Line Relief Valves S.B0.G12 350 50 R014
Cross Line Relief Valves Cross Line Relief Valves S.B0.G34 350 80 R015
Shuttle Valves
Cross Line Relief Valves Cross Line Relief Valves SH.V0.G18 350 10 R017
Cross Line Relief Valves Cross Line Relief Valves SH.V0.G14 350 20 R018
Cross Line Relief Valves Cross Line Relief Valves SH.V0.G38 350 30 R020
Cross Line Relief Valves Cross Line Relief Valves SH.V0.G12 350 50 R021
Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size

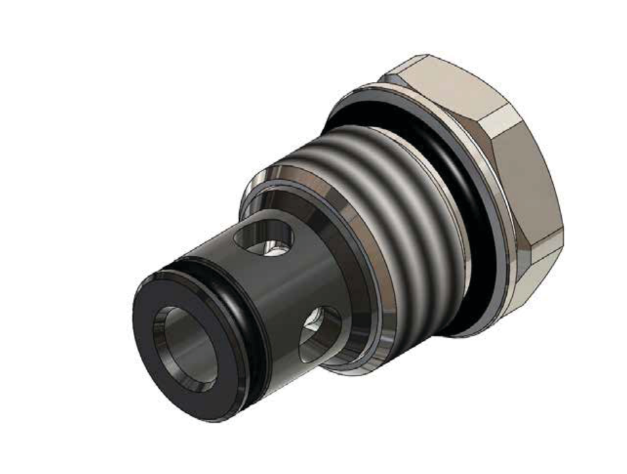

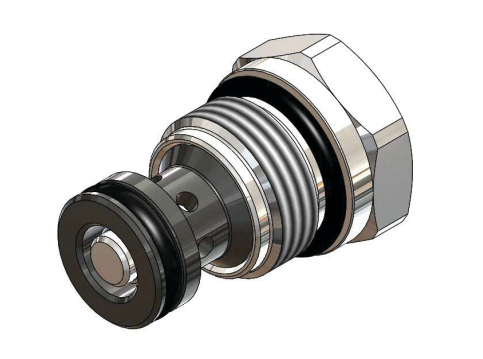

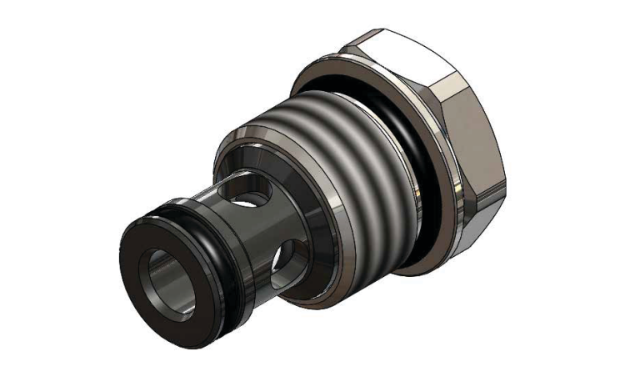

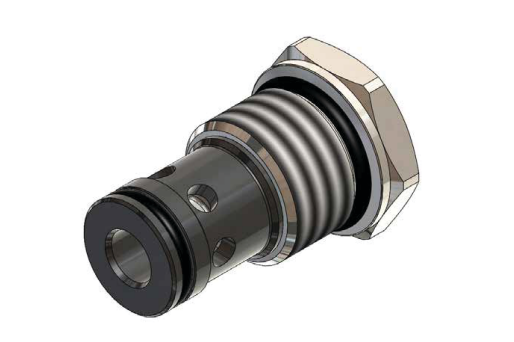

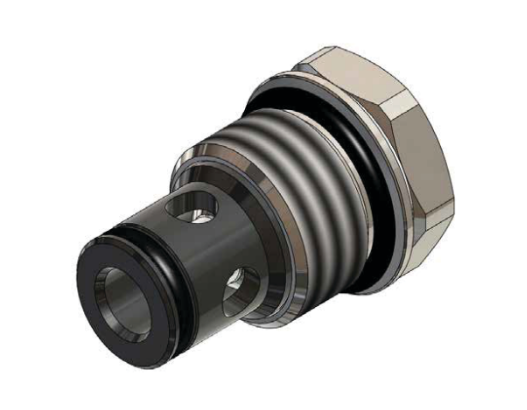

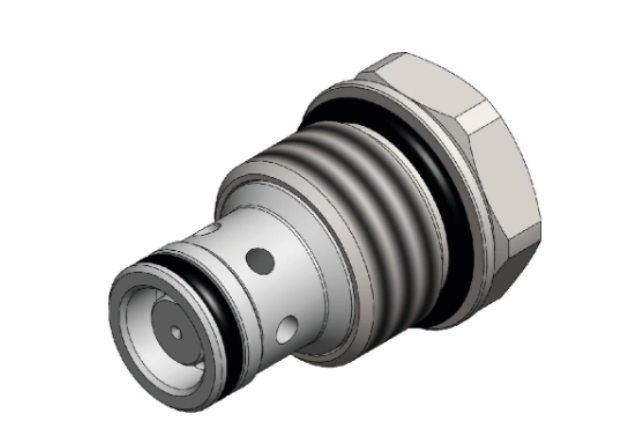

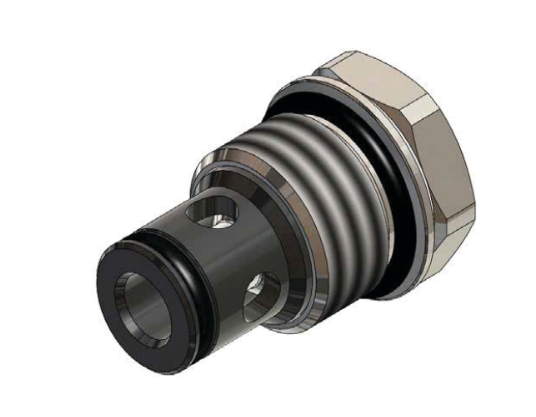

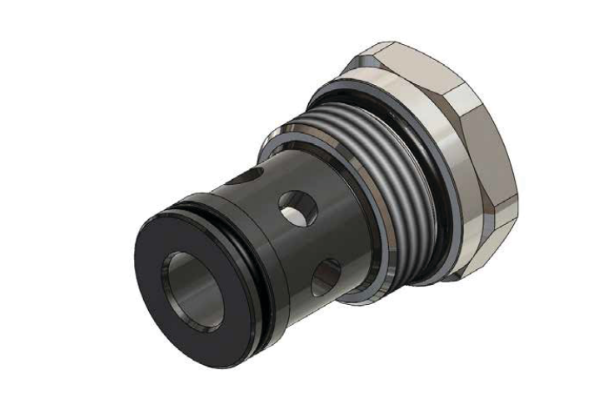

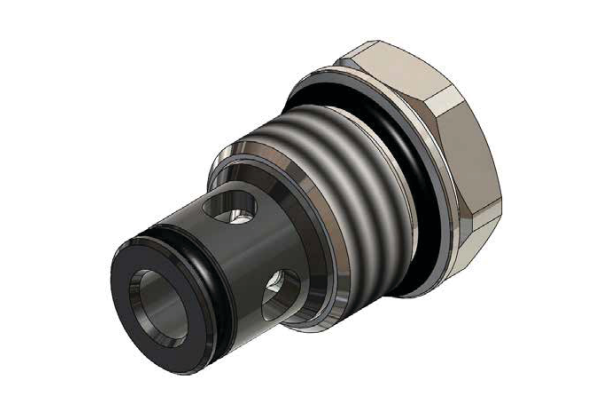

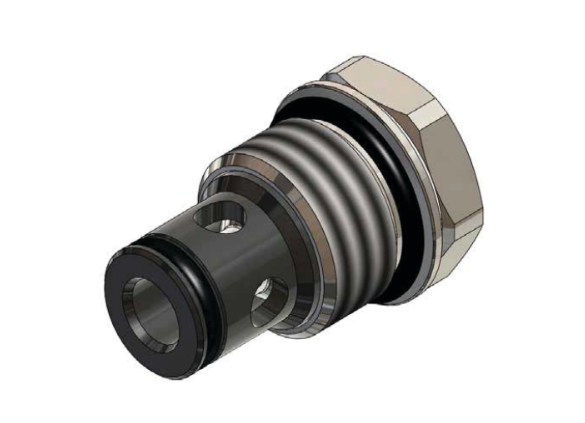

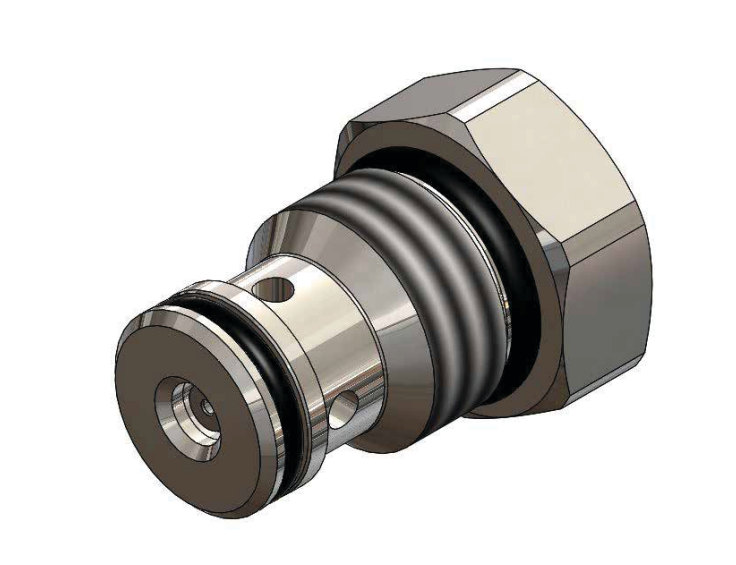

Screw In Type Check Valves
Cross Line Relief Valves Cross Line Relief Valves S.S4.S10 350 30 VH011
Cross Line Relief Valves Cross Line Relief Valves S.C0.S08 420 50 SAE08
Cross Line Relief Valves Cross Line Relief Valves S.C0.S10 420 80 SAE10
Cross Line Relief Valves Cross Line Relief Valves S.C0.S12 420 120 SAE12
Cross Line Relief Valves Cross Line Relief Valves S.C0.S16 350 320 SAE16
Cross Line Relief Valves Cross Line Relief Valves S.C0.S20 350 400 SAE20
Cross Line Relief Valves Cross Line Relief Valves S.Z0.S08 350 25 SAE08
Cross Line Relief Valves Cross Line Relief Valves S.Z0.S09 350 25 SAE09
Cross Line Relief Valves Cross Line Relief Valves S.Z0.S10 350 60 SAE10
Cross Line Relief Valves Cross Line Relief Valves S.H0.S08 420 50 SAE08
Cross Line Relief Valves Cross Line Relief Valves S.H0.S10 420 80 SAE10
Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size

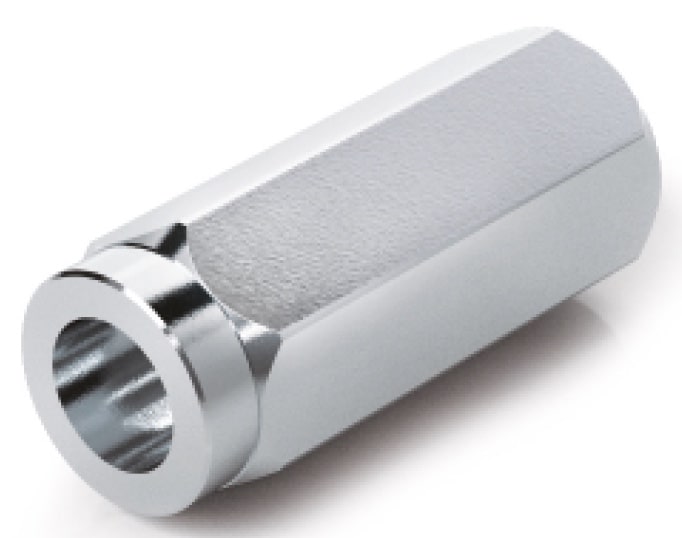

Check Valves
Check Valves Check Valves VU 1/8” 350 3 1/8”
VU 1/4” 350 20 1/4”
VU 3/8” 350 45 3/8”
VU 1/2” 350 70 1/2”
VU 3/4” 350 110 3/4”
VU 1” 350 160 1”
VU 1 1/4” 300 250 1 1/4”
VU 1 1/2” 300 350 1 1/2”
VU 2” 300 650 2”

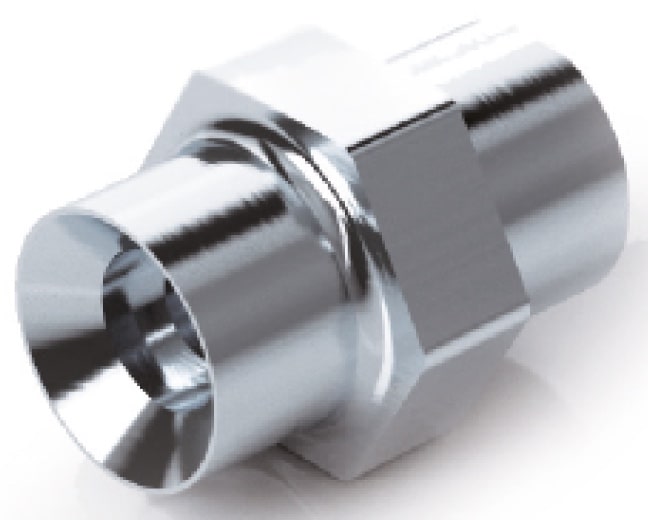

Male/Male Check Valves
Male/Male Check Valves Male/Male Check Valves VU MM 1/4” 350 8 1/4”
VU MM 3/8” 350 20 3/8”
VU MM 1/2” 350 50 1/2”
VU MM 3/4” 350 90 3/4”
VU MM 1” 320 150 1”
VU MM 1 1/4” 320 240 1 1/4”
VU MM 1 1/2” 320 300 1 1/2”
VU MM 2” 320 650 2”

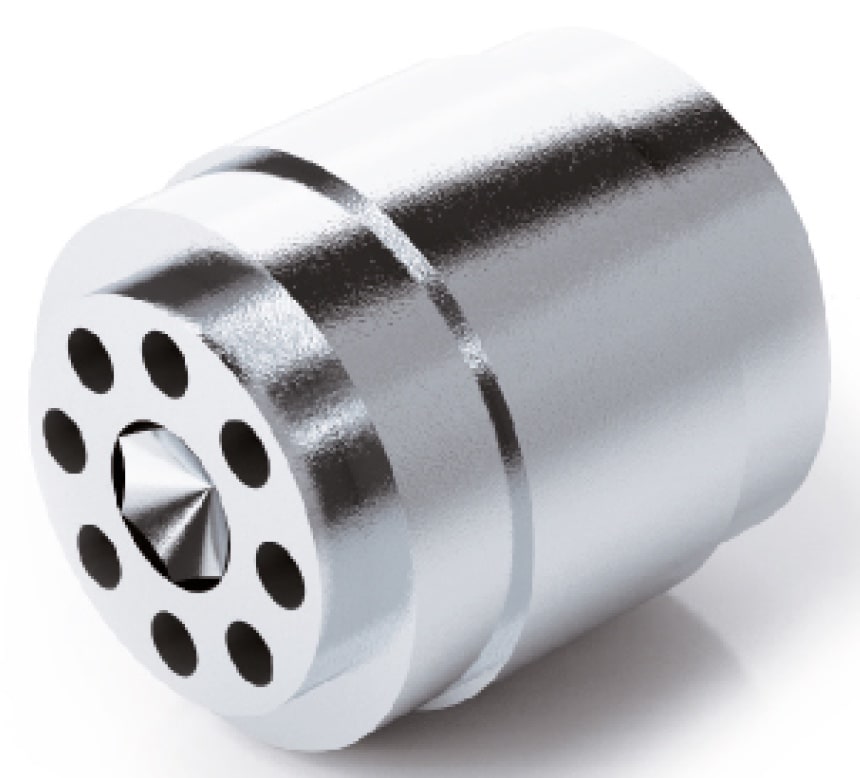

Integrated Check Valves
Integrated Check Valves Integrated Check Valves VU 1/4” 350 20 1/4”
VU 3/8” 350 30 3/8”
VU 1/2” 350 50 1/2”
VU 3/4” 350 80 3/4”

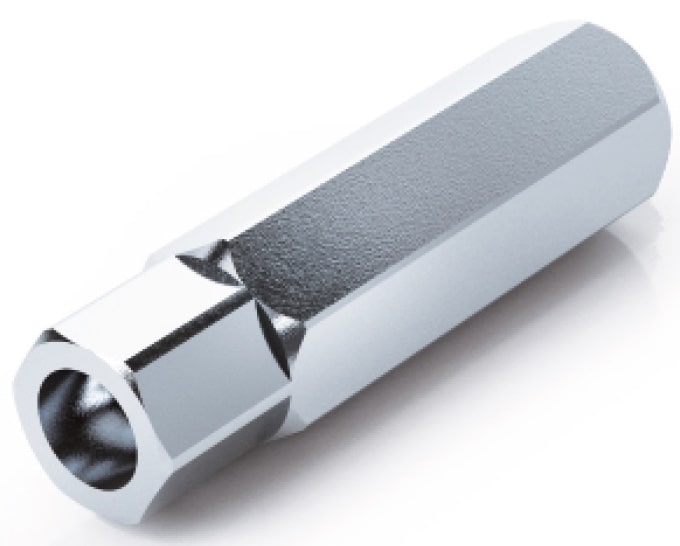

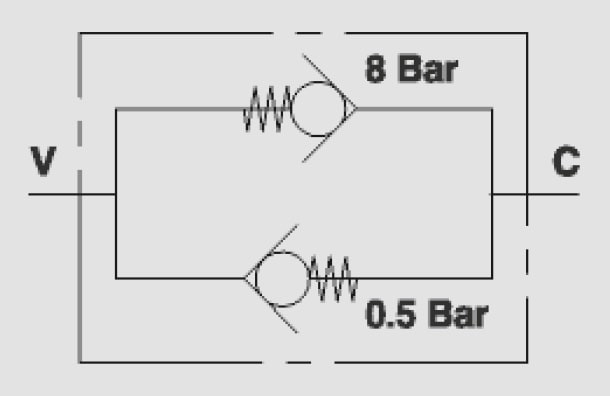

Bidirectional Check Valves
Bidirectional Check Valves Bidirectional Check Valves VRC 3/8” 350 35 `3/8”
VRC 1/2” 350 55 1/2”
