Diverter Valves

Products Direction Control Valves Diverter Valves
Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size

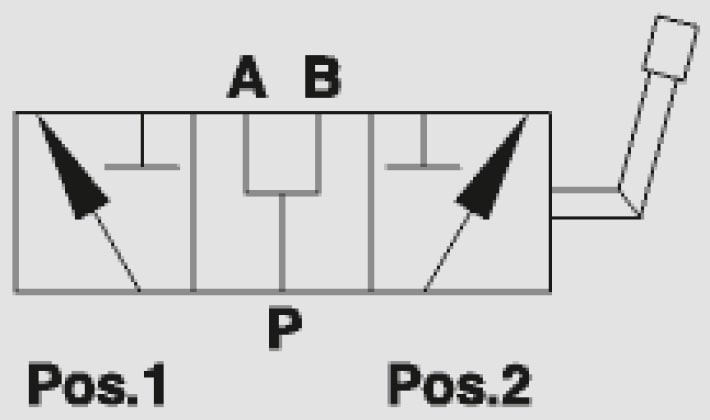

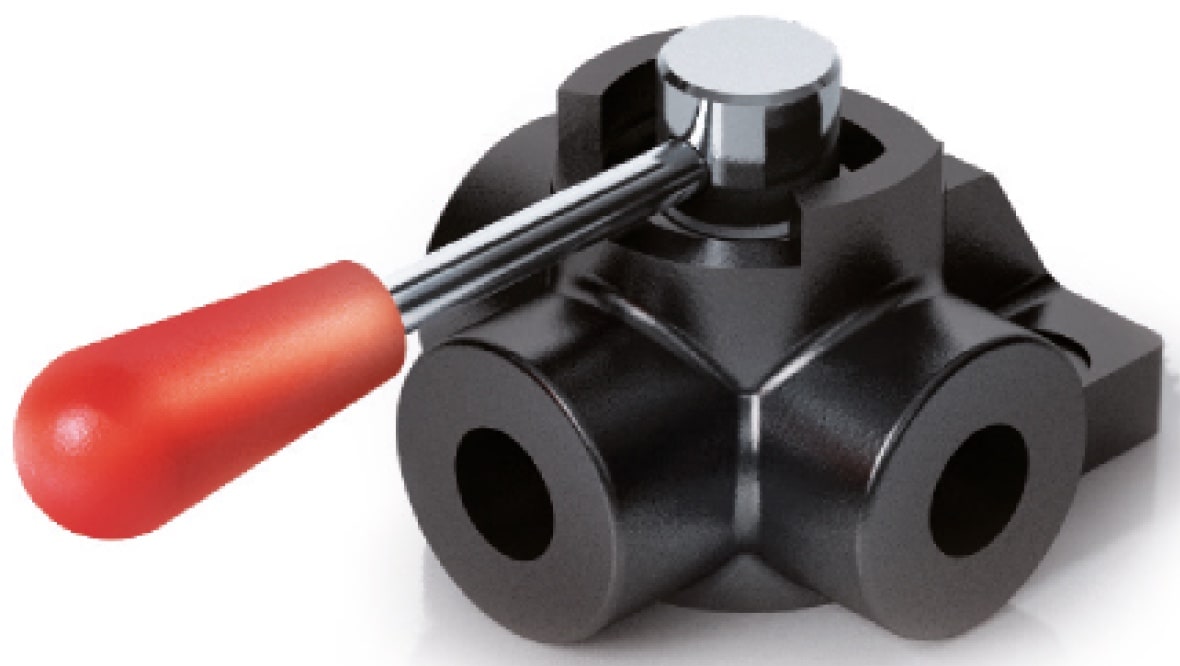

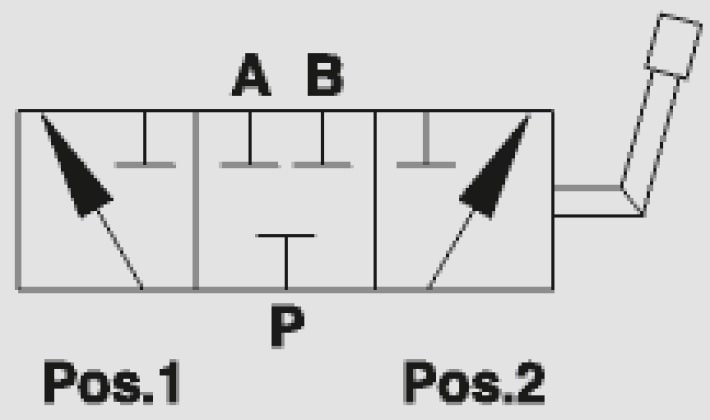

3 Ways Diverter Valves
3 Ways Diverter Valves 3 Ways Diverter Valves 3 Ways Diverter Valves DF 3 VIE 3/8” 300 60 3/8”
DF 3 VIE 1/2” 250 90 1/2”
DF 3 VIE 3/4” 220 120 3/4”
DF 3 VIE 1” 220 200 1”

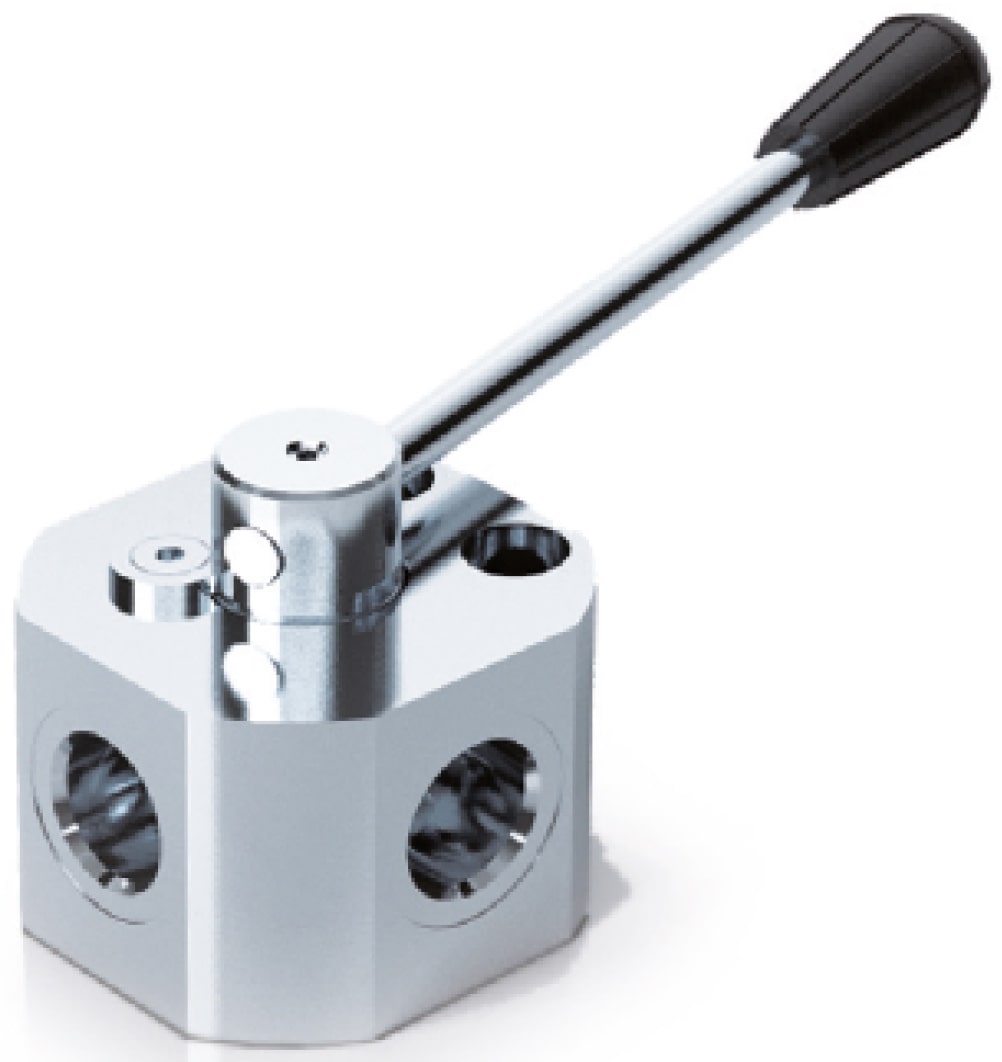

High Pressure 3 Ways Diverter Valves, Steel Body
High Pressure 3 Ways Diverter Valves, Steel Body

High Pressure 3 Ways Diverter Valves, Steel Body

High Pressure 3 Ways Diverter Valves, Steel Body

 DF 3 VIE 1/4" AP ACC. 500 40 1/4”
DF 3 VIE 3/8" AP ACC. 500 60 3/8”
DF 3 VIE 1/2" AP ACC. 500 90 1/2”
DF 3 VIE 3/4" AP ACC. 500 120 3/4”
DF 3 VIE 1" AP ACC.. 500 180 1”

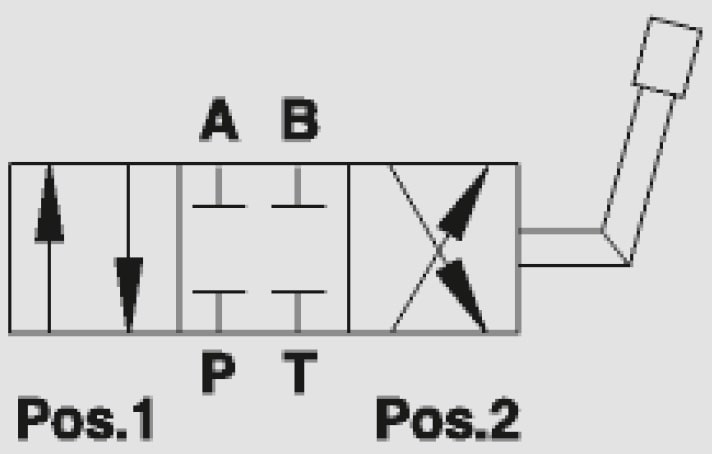

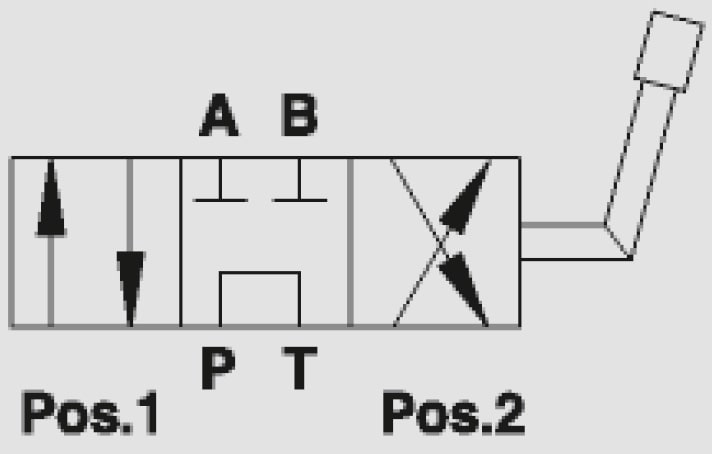

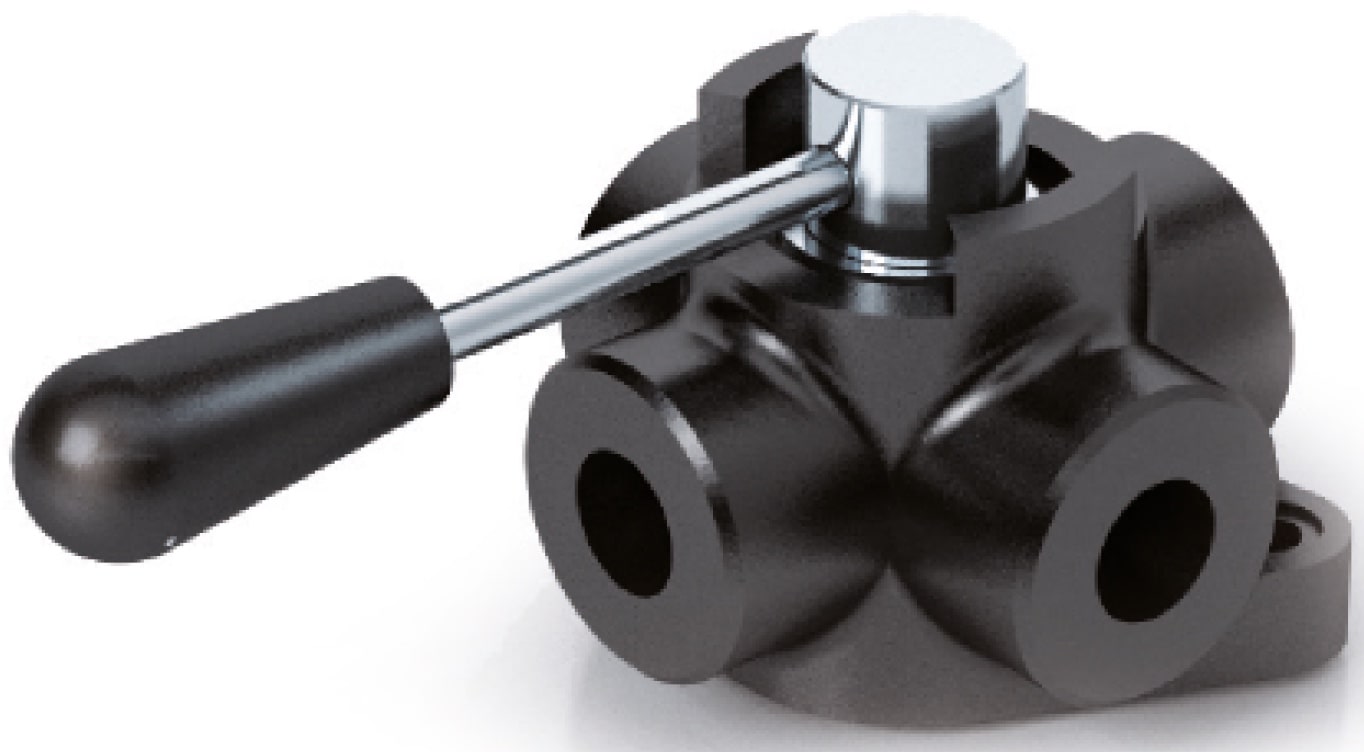

4 Ways Diverter Valves
4 Ways Diverter Valves

4 Ways Diverter Valves

4 Ways Diverter Valves

 IF 4 VIE 3/8” 300 60 3/8”
IF 4 VIE 1/2” 250 90 1/2”
IF 4 VIE 3/4” 250 120 3/4”

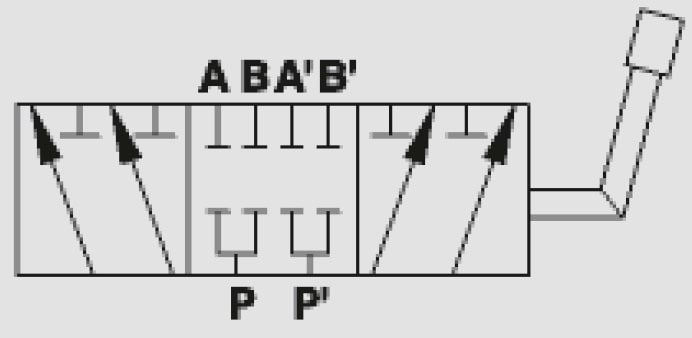

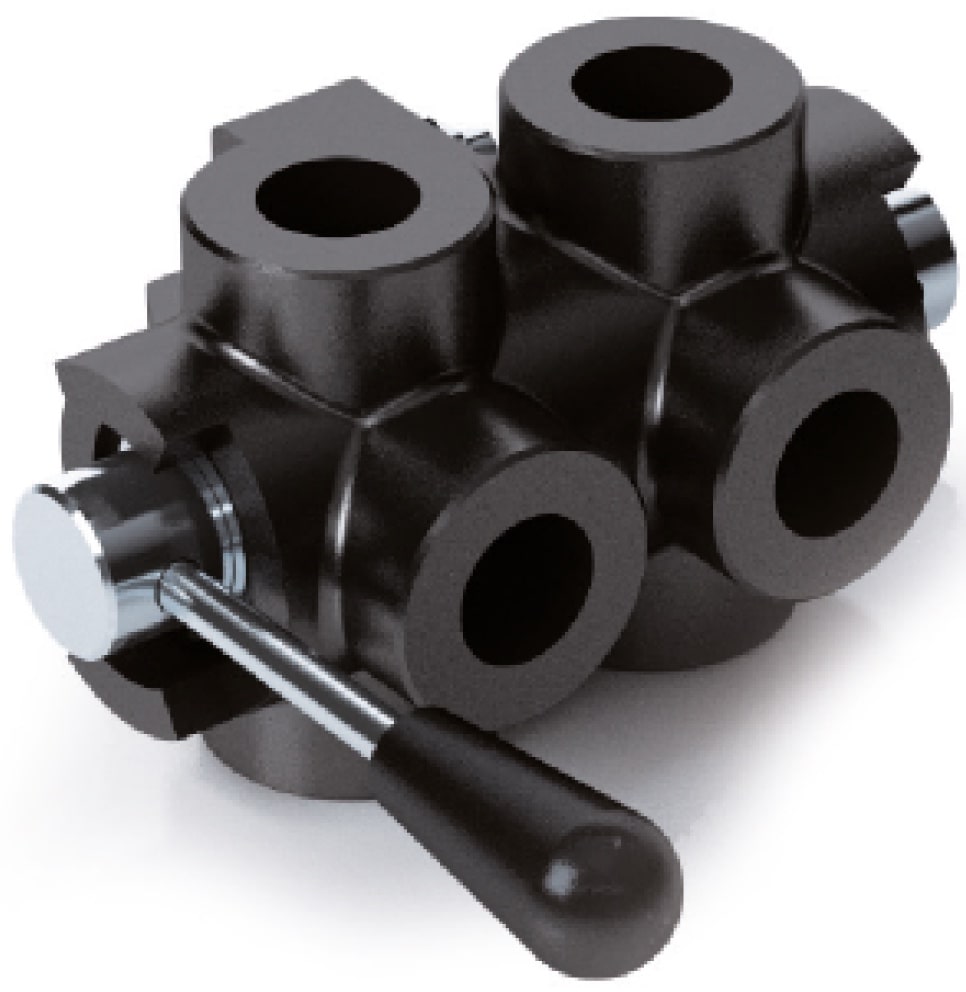

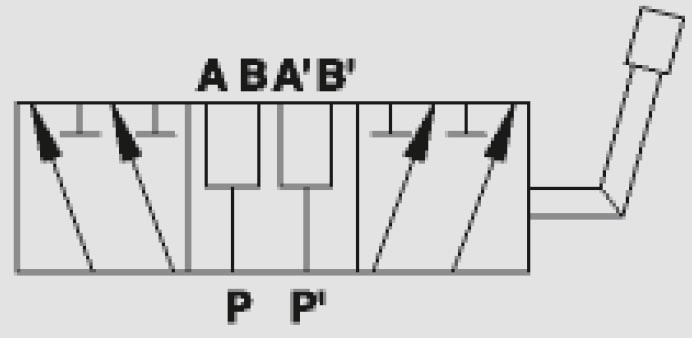

6 Ways Diverter Valves
6 Ways Diverter Valves

6 Ways Diverter Valves

6 Ways Diverter Valves

 DF 6 VIE 3/8” 300 60 3/8”
DF 6 VIE 1/2” 250 90 1/2”
DF 6 VIE 3/4” 220 120 3/4”
DF 6 VIE 1” 220 200 1”
