End Of Stroke Valves

Products Direction Control Valves End Of Stroke Valves
Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size
End Stroke Valves, Normally Open
End Stroke Valves, Normally Open End Stroke Valves, Normally Open V-FCR 1T 60 350 60 3/8”
V-FCR 1T 80 350 80 1/2”
V-FCR 1T 120 350 120 3/4”
End Stroke Valves, Normally Closed
End Stroke Valves, Normally Closed End Stroke Valves, Normally Closed V-FCR 2T 60 350 60 3/8”
V-FCR 2T 80 350 80 1/2”
V-FCR 2T 120 350 120 3/4”
Push Button End Stroke Valves, Normally Closed
Push Button End Stroke Valves, Normally Closed Push Button End Stroke Valves, Normally Closed class= V - 101 3/8” NC 350 50 3/8”
V - 121 1/2” NC 350 70 1/2”
V - 201 3/4” NC 350 100 3/4”
End Of Stroke Valves With CAM, Normally Closed
End Of Stroke Valves With CAM, Normally Closed End Of Stroke Valves With CAM, Normally Closed class= V - FCC 1/2” NC 350 70 1/2”

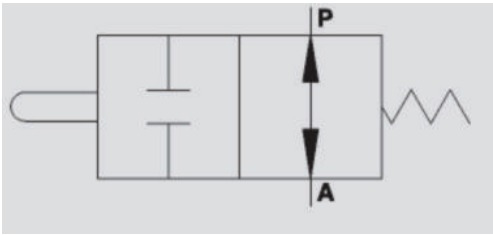

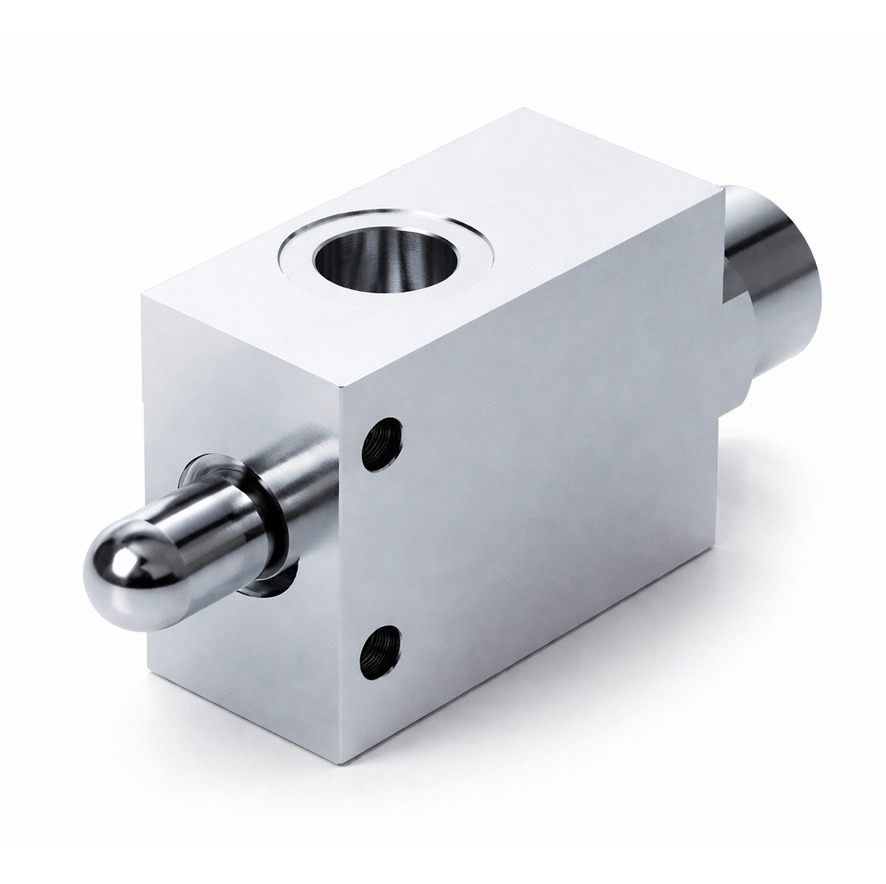

Pushbutton End Of Stroke Valves, Normally Open
Pushbutton End Of Stroke Valves, Normally Open Pushbutton End Of Stroke Valves, Normally Open class= V - 101 3/8” NA 350 45 3/8”
V - 121 1/2” NA 350 60 1/2”
