Relief Valves

Products Pressure Control Valves Relief Valves

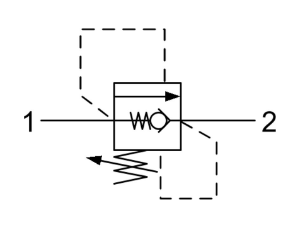

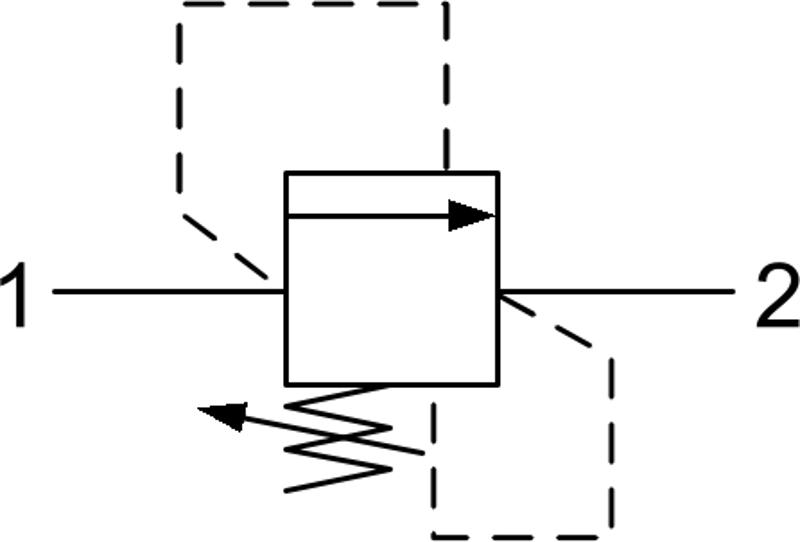

Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size

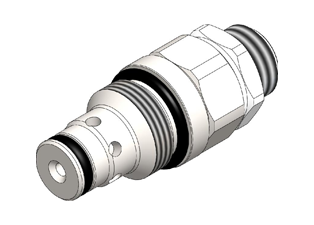

Cartridge Relief Valves 20 LPM
Cartridge Relief Valve 20 LPM Cartridge Relief Valve 20 LPM VMPC 20 10-180 BAR 10-180 20 3/4"-16
VMPC 20 180-350 BAR 180-350 20 3/4”-16
Cartridge Relief Valve 35 LPM
Cartridge Relief Valve 35 LPM Cartridge Relief Valve 35 LPM VMPC 35 10-120 BAR 10-120 35 M20X1.5
VMPC 35 10-120 BAR 50-300 35 M20X1.5
Cartridge Relief Valve 80 LPM
Cartridge Relief Valve 80 LPM Cartridge Relief Valve 80 LPM VMPC 80 10-120 BAR 10-120 80 M26x1.5
VMPC 80 50-300 BAR 50-300 80 M26X1.5
Cartridge Relief Valve 120 LPM
Cartridge Relief Valve 120 LPM Cartridge Relief Valve 120 LPM VMPC 120 20-200 BAR 20-200 160 M32X1.5
VMPC 120 50-400 BAR 50-400 160 M32X1.5
 Relief Valves
Cross Line Relief Valves Cross Line Relief Valves DB.A0.M18 350 60 R160
Cross Line Relief Valves Cross Line Relief Valves DB.B0.M16 450 1.5 R001
Cross Line Relief Valves Cross Line Relief Valves DB.C0.S08 350 30 SAE08-2
Cross Line Relief Valves Cross Line Relief Valves DB.C0.S09 350 40 SAE09-2
Cross Line Relief Valves Cross Line Relief Valves DB.C0.S10 350 50 SAE10-2
Cross Line Relief Valves Cross Line Relief Valves DB.S0.S10 350 80 SAE10-2
Cross Line Relief Valves Cross Line Relief Valves DB.B7.S08   350 80 SAE10-2
Pilot Operated Relief Valves
Cross Line Relief Valves Cross Line Relief Valves DB.Q0.S10 420 120 SAE10-2
Cross Line Relief Valves Cross Line Relief Valves DB.R0.116 420 250 R194
Pilot Operated with anti-cavitation Relief valves
Cross Line Relief Valves Cross Line Relief Valves DB.P0.M20 420 100 R041
Cross Line Relief Valves Cross Line Relief Valves DB.P0.M24 420 120 R077
Cross Line Relief Valves Cross Line Relief Valves DB.P0.M26 420 150 R024
Cross Line Relief Valves Cross Line Relief Valves DB.P0.M27 420 100 R094
Cross Line Relief Valves Cross Line Relief Valves DB.P0.M36 420 400 R208
Cross Line Relief Valves Cross Line Relief Valves DB.P0.S10 420 100 SAE10-2
Cross Line Relief Valves Cross Line Relief Valves DB.P4.M28 420 250 R091
Cross Line Relief Valves Cross Line Relief Valves DB.P4.S10 420 100 R189
Images Circuit Images Code Max. pressure
in bar 		Max. Flow
in LPM		 Port Size
Differential Area In Line Mounting Relief Valves
Differential Area In Line Mounting Relief Valves Differential Area In Line Mounting Relief Valves VMPP L D5 3/4” 350 120 3/4”
Double Relief Valves
Double Relief Valves Double Relief Valves VMPD 3/8” 350 45 3/8"
VMPD 1/2” 350 70 1/2”
1/4” In Line Mounting Relief Valves
1/4” In Line Mounting Relief Valves 1/4” In Line Mounting Relief Valves VMP L D5 1/4” 350 30 1/4"
Differential Area Relief Valves
Differential Area Relief Valves Differential Area Relief Valves VMPP 3/4” 350 120 3/4”
VMPP 1” 350 160 1”
In Line Mounting Relief Valves
In Line Mounting Relief Valves In Line Mounting Relief Valves VMP L D5 3/8” 350 45 3/8”
VMP L D5 1/2” 350 70 1/2”
VMP L D5 3/4” 350 90 3/4”
Relief Valves
Relief Valves Relief Valves VMP 3/8” 350 45 3/8”
VMP 1/2” 350 70 1/4”
VMP 3/4” 350 90 3/4”



Light Weight Relief Valves
Light Weight Relief Valves Light Weight Relief Valves VMP 1/4” L 350 30 1/4”
VMP 3/8” L 350 40 3/8”
